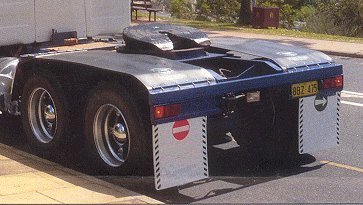

RUBBER TRUCK MUDGUARDS
Another great Australian product in the extensive range of Dynaplas truck mudguards, made from 100% rubber. This mudguard comes in various sizes produced from virgin materials. Engineer for extreme Australian conditions, used on road trains across the nation. Rubber Mudguards made from 100% Rubber. Below is a product list with information about size, type and shipping weight.

Truck mudguard - Price List Click Here
Reseller, original equipment manufacturers, fleet and trade please contact us for your discount
Ph 02 9627 5944

Rubber Truck Mudguard KITS
Part
FGT27
FGT31
FGTD42
FGS16

Description
Tandem 2 strips 2.7m x 670mm, 8 spr, 8 bkts
Tandem 2 strips 3.1m x 670mm, 8 spr, 8 bkts
Triaxle dual wheels 2 strips 4.2m x 670mm
Single axle 2 strips 1.6m x 670mm, 8 spr, 8 bkts

Weight
29
32
42
19

Separate parts/spares
Part
FGAEBW
FGAEBH
FGAEBN
FGAS
FGAR
FGASK
FGSBR
FGMB

Description
End bracket wide 40 x 3 x 670mm-1 piece only
End bracket hooks 40 x 3 x 670mm-1 piece only
End bracket narrow 20 x 3 x 670mm-1 piece only
Springs- 1 only spring
New rubber strip-1 ply 660mm
Support kit-Tandem dual (6xFGSBR) + (2xFGMB)
Support bracket rotating
Support mount bracket (front end spring mounts)

Weight
.58
.58
.58
.18
4.46
35
4
4

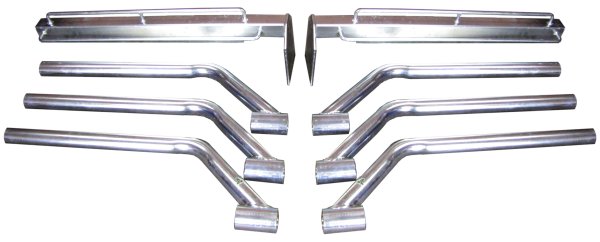

Rubber Truck Mudguard Mounting Brackets
Suit Prime Movers, semi trailers and road trains. Australian made for the harsh Australian environment.
Left and right front bracket.
6 x offset poles with extra large offset
All fully welded steel
Plated in zinc for protection from rust
Part# FGASK

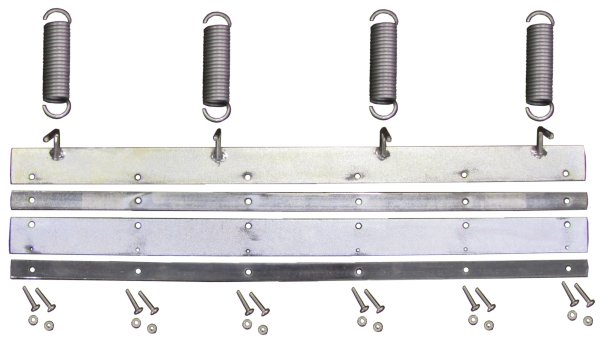

Rubber Truck Mudguard Clamping Kit
Used to attach hooks for springs to attach to by clamping with steel pre drilled metal strips. Australian made for the harsh Australian environment.
Brackets supplied with rubber kits
8 x Springs
2 x hook brackets
2 x wide clamping strips
4 x Narrow backing strips
Stainless steel fasteners
Part# FGT27

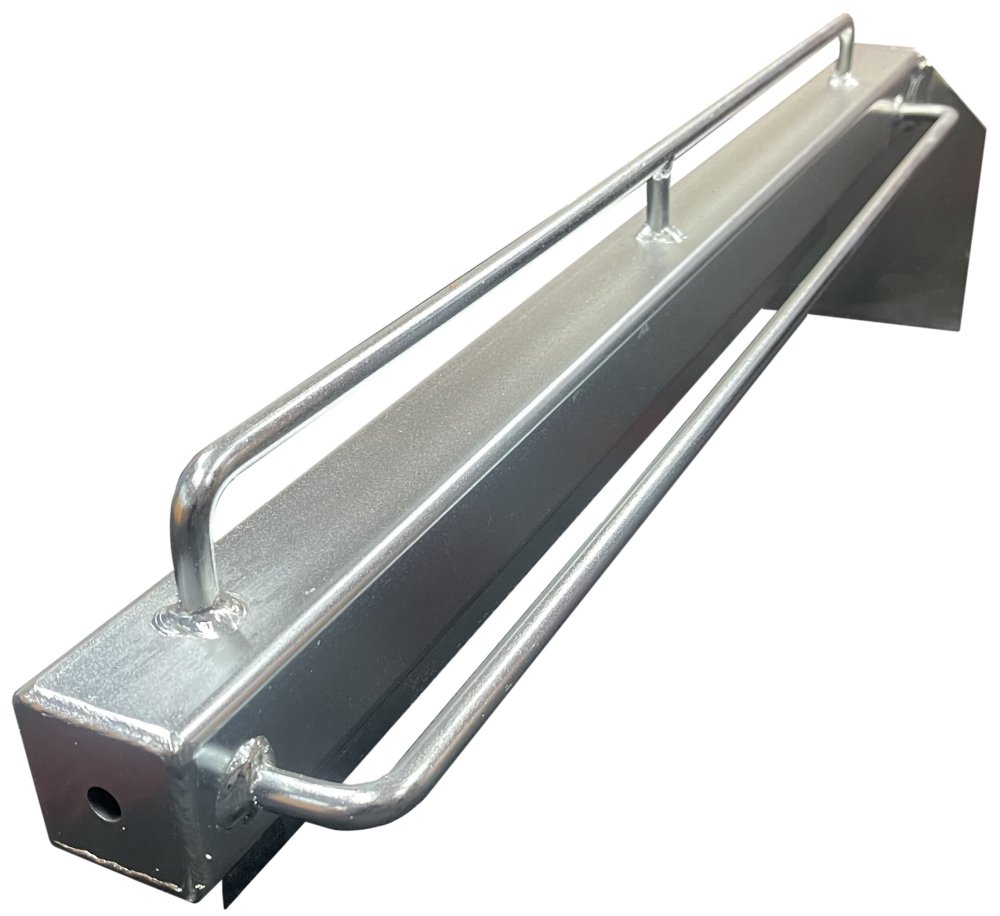

Rubber Truck Mudguard
FRONT LEFT SUPPORT
Used to attach rubber truck mudguards, left front support bracket.
Fully welded steel electroplated zinc for protection against rust.
Large end plate to weld or bolt on to the truck chassis
Steel bar to hook spring to
Steel bar to tuck excess rubber down into.
Welded flat bar underneath to bolt mudflap to
4kg each
Part# FGMB L

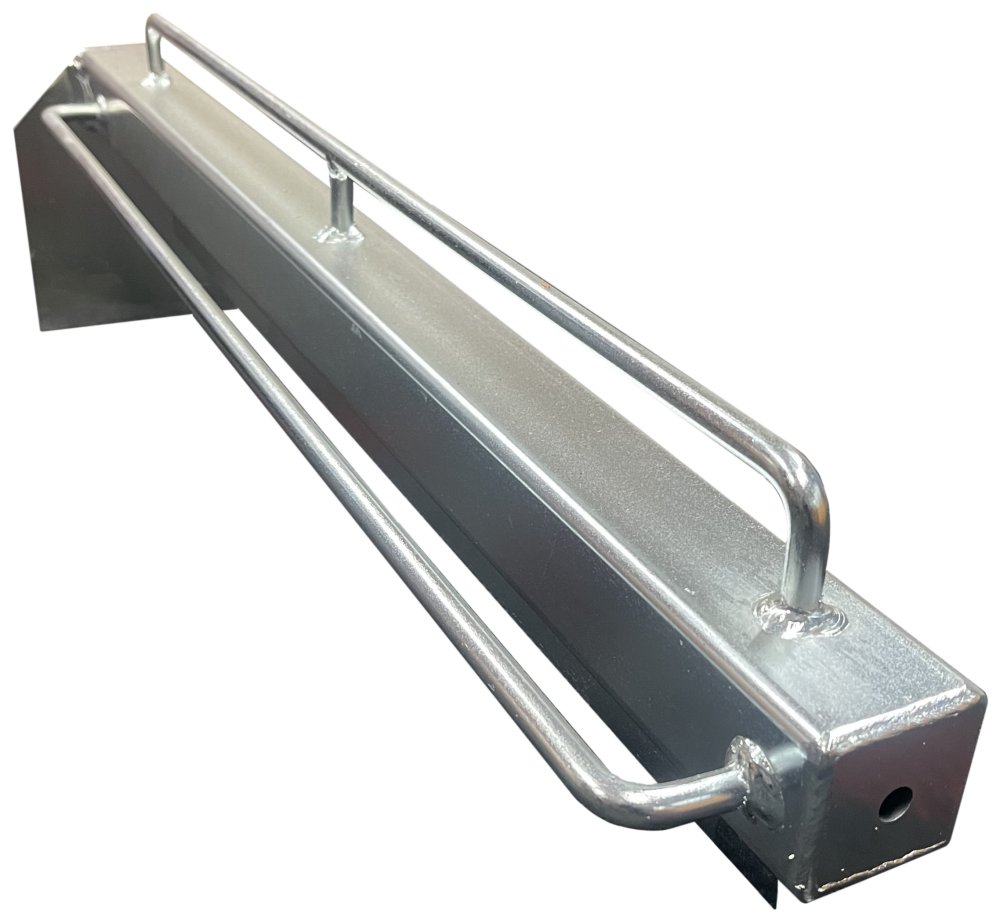

Rubber Truck Mudguard
FRONT RIGHT SUPPORT
Used to attach rubber truck mudguards, right front support bracket.
Fully welded steel electroplated zinc for protection against rust.
Large end plate to weld or bolt on to the truck chassis
Steel bar to hook spring to
Steel bar to tuck excess rubber down into.
Welded flat bar underneath to bolt mudflap to
4kg each
Part# FGMB R

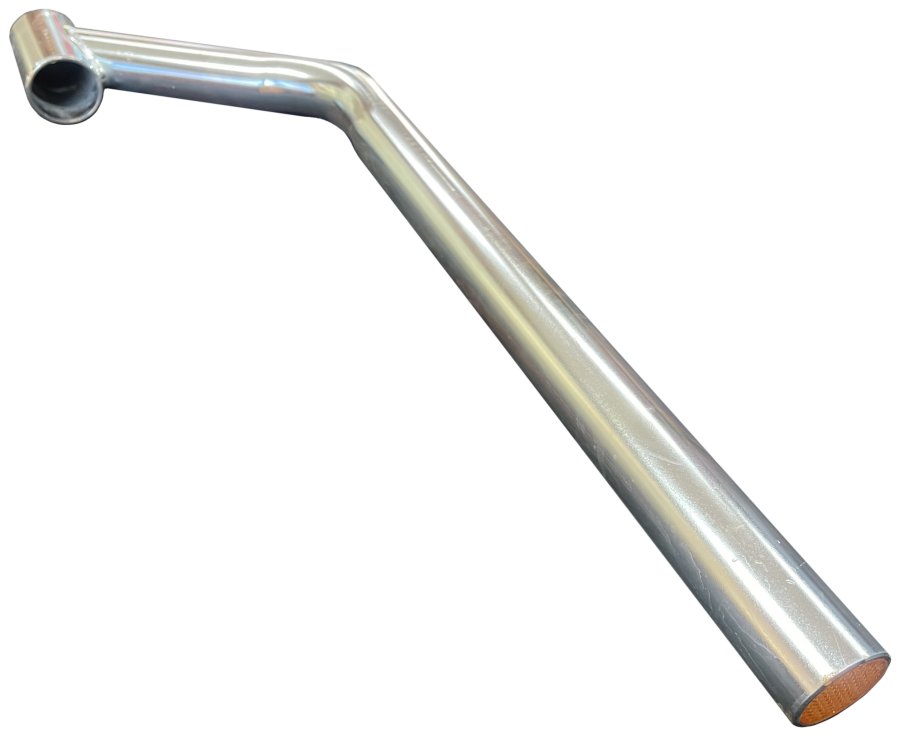

Rubber Truck Mudguard
SUPPORT BRACKET
Used to support the rubber mudguard up above the tyres
Fully welded steel electroplated zinc for protection against rust.
Has a reflector recessed in the end off the pole.
This pole has an extra large offset compared to normal truck mudguard poles.
4kg each
Part# FGSBR

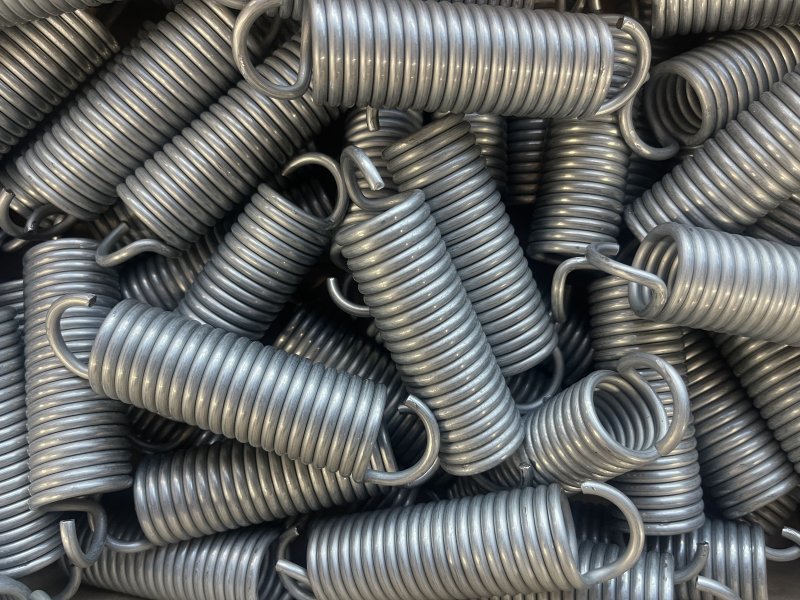

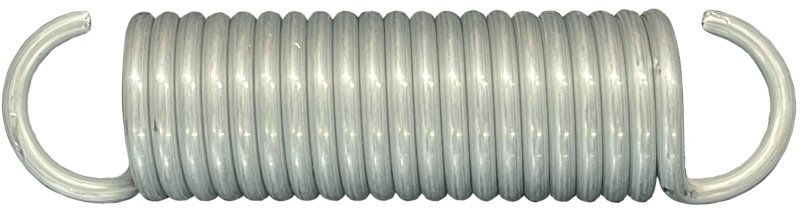

Rubber Truck Mudguard
SPRING
Used to attach rubber truck mudguards
Springs attach to the rubber mudguard clamp with hooks on them
Then to the front chassis brackets
Zinc plated for protection against rust.

180 grams each
Part# FGAS

Secure enquiry

We also have
Polyethylene Truck Mudguards
Aluminium Truck Mudguards
Stainless Steel Truck Mudguards

Rubber Truck Mudguards – Frequently Asked Questions

What are rubber truck mudguards used for?
Rubber truck mudguards are designed to reduce road spray, protect vehicles and improve road safety. They help stop water, mud and stones being thrown up from the tyres of trucks, trailers, prime movers and road trains.

What vehicles are rubber mudguards suitable for?
Rubber mudguards are commonly used on prime movers, semi trailers, B-doubles, road trains, tipper trucks and other heavy transport vehicles operating in tough Australian conditions.

Why choose rubber mudguards instead of rigid mudguards?
Rubber mudguards are extremely flexible and durable. They can bend when hitting obstacles or rough terrain and return to shape without cracking, making them ideal for heavy duty trucking applications.

Are Dynaplas rubber mudguards Australian made?
Yes. Dynaplas rubber truck mudguards and mounting components are Australian made and designed for the harsh operating conditions found across Australia.

Do the rubber mudguards come in complete kits?
Yes. Dynaplas offers complete rubber mudguard kits including rubber strips, brackets, springs and mounting components. Individual spare parts and replacement components are also available.

What axle configurations are available?
Rubber mudguard kits are available for single axle, tandem axle and tri-axle trailer configurations, making them suitable for a wide range of trucks and trailers.

How are rubber truck mudguards mounted?
Rubber mudguards are typically mounted using steel support brackets, springs and clamping plates. These allow the mudguard to flex and move when required while maintaining proper positioning above the tyres.

Are spare parts available?
Yes. Dynaplas supplies a full range of spare parts including springs, support brackets, mounting brackets, rubber strips and clamping kits for easy maintenance and replacement.

Do rubber mudguards help reduce road spray?
Yes. Rubber mudguards help reduce water spray and debris thrown from tyres, improving visibility for other road users and contributing to safer driving conditions.

How can I order Dynaplas rubber mudguards?
You can order directly from Dynaplas or contact the sales team for pricing, trade enquiries and freight options. A full product price list is also available on the Dynaplas website.
