    Truck Products
    EXTRUDED ALUMINIUM TRUCK MUDGUARD BRACKET
    The following images show technical drawings and sample photos of our short extruded aluminium truck mudguard bracket. The BK-EXT bracket is designed to provide a strong, lightweight and reliable mounting solution for truck mudguards.

    Manufactured from high quality extruded aluminium, this bracket offers excellent durability and corrosion resistance while maintaining a lightweight design of approximately 250 grams per bracket.

    Each bracket is supplied with an aluminium backing plate and mounting fasteners for easy installation. These brackets are commonly used on trucks and trailers and complement plastic, aluminium and stainless steel mudguards.

    Specifications
    • Part Number: BK-EXT
    • Material: Extruded Aluminium
    • Product Weight: Approximately 250 grams each
    • Includes aluminium backing plate
    • Supplied with mounting fasteners
    • Suitable for plastic, aluminium and stainless steel truck mudguards
    • Lightweight, strong and corrosion resistant

    Truck mudguard and mudguard brackets - Price List Click Here
    Reseller, original equipment manufacturers, fleet and trade
    please contact us for your discount Ph 02 9627 5944


    TRUCK MUDGUARD BRACKET BK-EXT

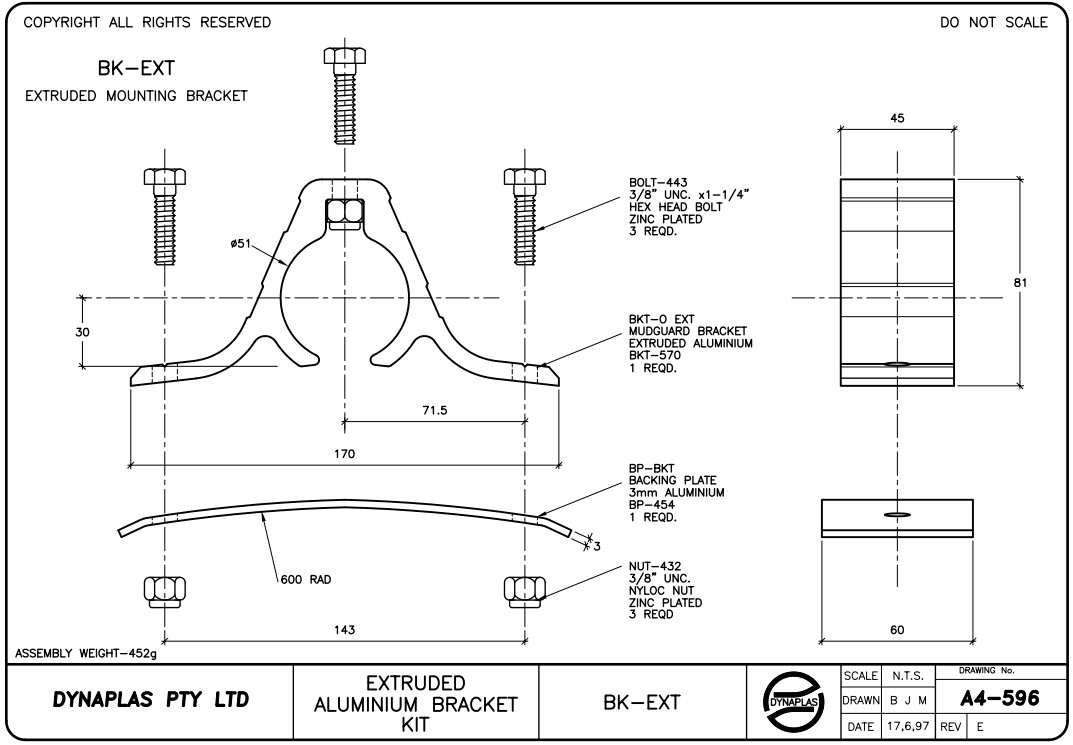

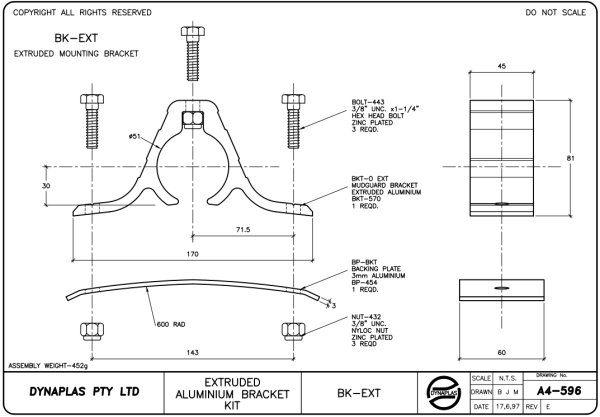

    PDF Tech Drawing # BK-EXT

    TRUCK MUDGUARD BRACKET BK-EXT


    TRUCK MUDGUARD BRACKET BK-EXT

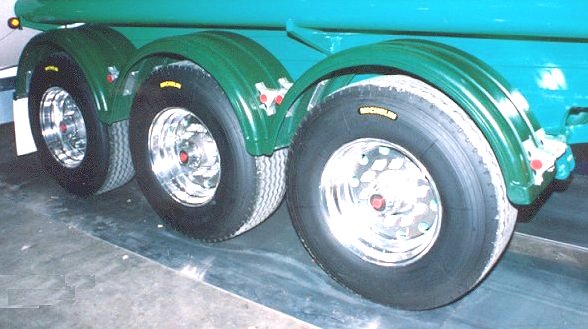

    Shown here fitted up with
    Dynaplas Polyethylene
    Super single mudguards
    dark green
    on a tri-axle semi trailer.

    Manufactured in Australia by Dynaplas

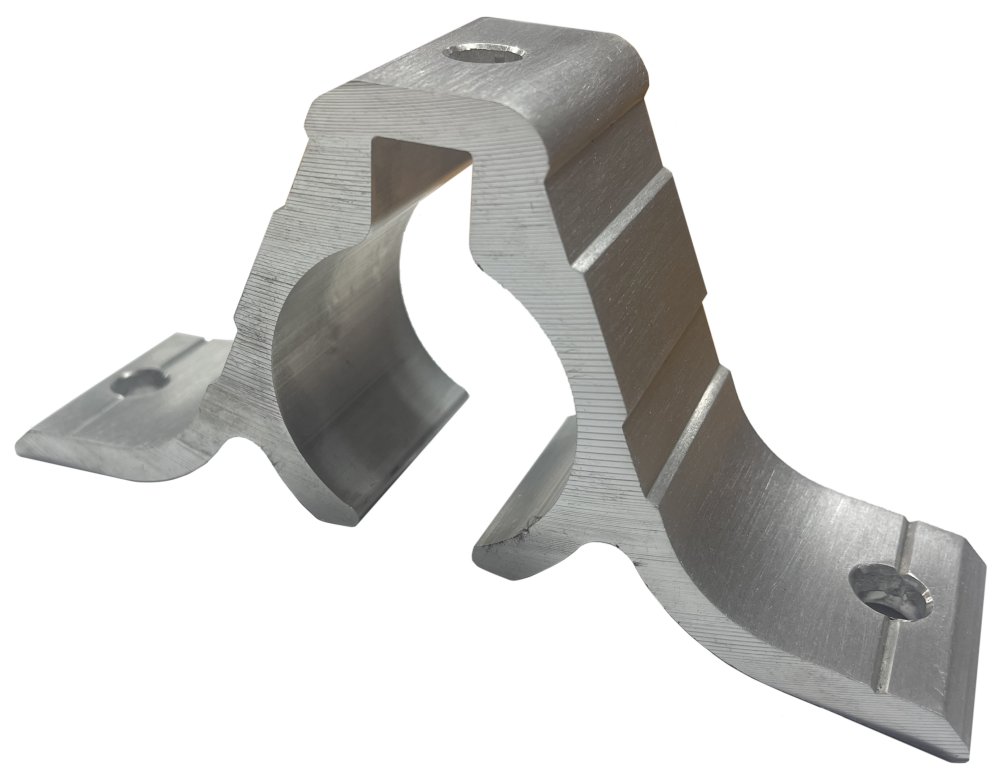

    TRUCK MUDGUARD BRACKET BK-EXT

    Frequently Asked Questions – Truck Mudguard Brackets

    What is the BK-EXT truck mudguard bracket used for?
    The BK-EXT short extruded aluminium bracket is used to securely mount truck mudguards to chassis poles or mounting systems on trucks and trailers. It provides a strong and stable support for truck mudguards while the vehicle is operating.

    What material is the BK-EXT truck mudguard bracket made from?
    The BK-EXT bracket is manufactured from high quality extruded aluminium. This material offers excellent strength while remaining lightweight and corrosion resistant, making it ideal for mounting truck mudguards.

    How much does the BK-EXT truck mudguard bracket weigh?
    Each BK-EXT truck mudguard bracket weighs approximately 250 grams, providing a lightweight yet durable solution for mounting truck mudguards.

    What is included with the truck mudguard bracket?
    Each BK-EXT truck mudguard bracket is supplied with an aluminium backing plate and mounting fasteners, allowing quick and easy installation on most truck mudguard mounting systems.

    Can the BK-EXT bracket be used with different types of truck mudguards?
    Yes. The BK-EXT bracket is suitable for plastic truck mudguards, aluminium truck mudguards and stainless steel truck mudguards.

    Are aluminium brackets good for truck mudguards?
    Yes. Aluminium brackets are commonly used for truck mudguards because they are strong, lightweight and naturally resistant to corrosion from water, road grime and harsh weather conditions.

    Can these brackets be used on truck trailers?
    Yes. The BK-EXT bracket is suitable for mounting truck mudguards on trucks, trailers and other heavy transport vehicles.

    How are truck mudguards mounted to a truck?
    Truck mudguards are typically mounted using chassis poles attached to the truck frame. Mudguard brackets such as the BK-EXT are then used to secure the truck mudguards to the mounting poles.

    How many brackets are needed for truck mudguards?
    Most truck mudguards use two or more brackets depending on the length and style of the mudguard. Using multiple brackets ensures truck mudguards remain stable and properly supported.

    Why are strong brackets important for truck mudguards?
    Truck mudguards are exposed to constant vibration, road debris and harsh operating conditions. Strong mounting brackets ensure truck mudguards remain secure and help prevent damage or movement while the vehicle is travelling.

    Do aluminium truck mudguard brackets rust?
    No. Aluminium does not rust like steel. Aluminium truck mudguard brackets are corrosion resistant, making them ideal for use on trucks and trailers operating in all weather conditions.

    Are these brackets suitable for Australian transport conditions?
    Yes. These brackets are designed for use with truck mudguards on heavy vehicles operating in demanding Australian road conditions.
